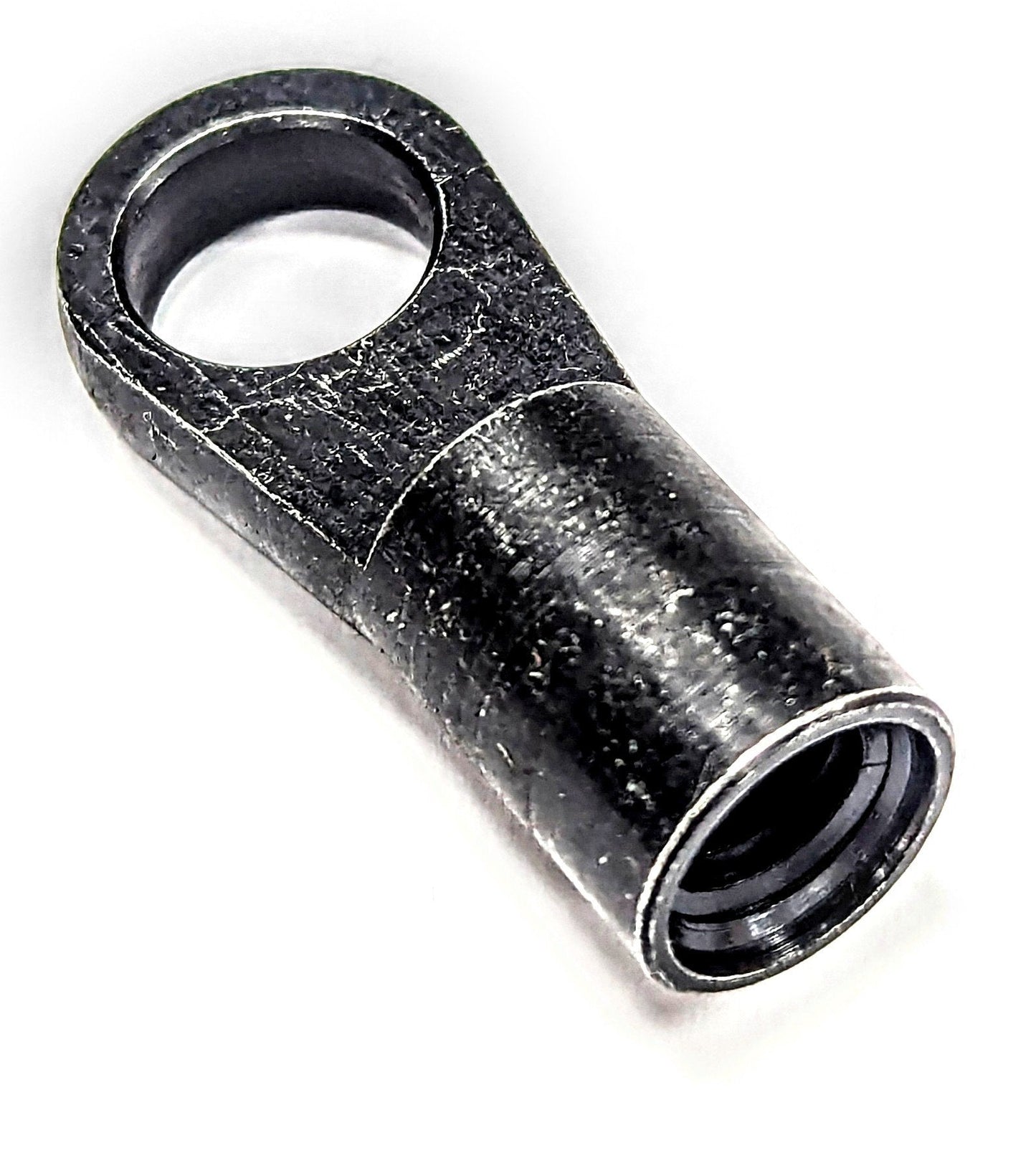

Eyelet, 10 mm diameter, 30 mm centre, 5 mm thick, M10 thread

Eyelet with a 10 mm bore, 30 mm centre distance, 5 mm thickness and M10 thread. It is the end fitting that closes the gas spring rod and joins it to the bracket through a pin or bolt.

All three dimensions have to match your mounting: the 10 mm bore sets the pin diameter; the 30 mm to centre sets how far the pivot sits from the rod end, and with it the overall assembled length; and the 5 mm thickness must fit inside the clevis or between the bracket ears.

The M10 thread fits 14/28 series gas springs. Check the thread on your rod before ordering: it is the one figure that cannot be adapted.

Bore: 10 mm · Centre: 30 mm · Thickness: 5 mm · Thread: M10
